Product Description

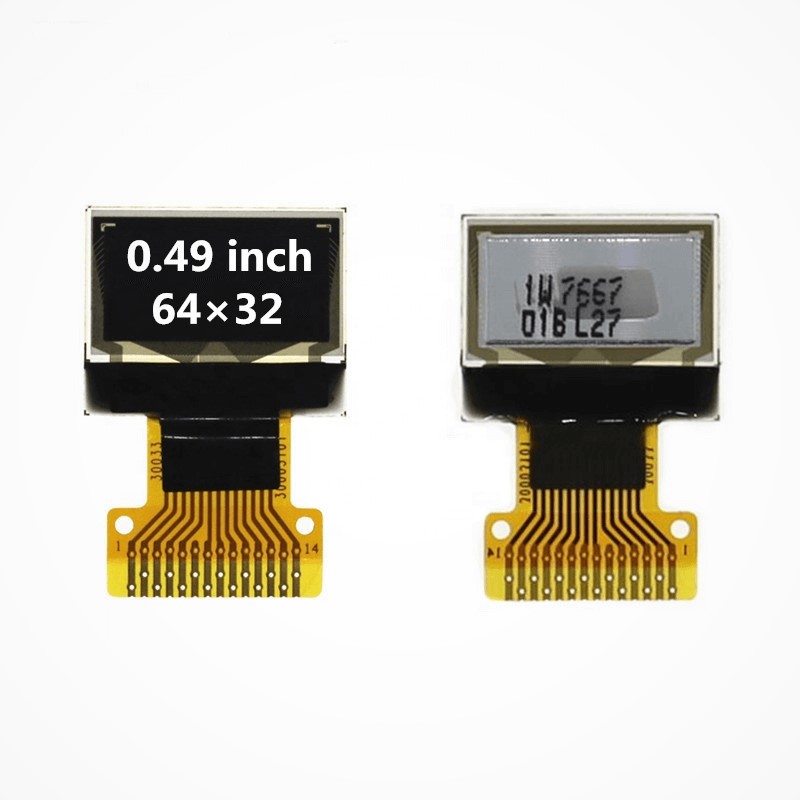

64x32 Graphic OLED Display | RY-6432TSWEG02
Module size: 14.5×11.6×1.2mm
Driver: SSD1306
White Pixels, I2C interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 3V OLED, RoHS Compliant.
| Model Number | RY-6432TSWEG02 |
| Resolution | 64*32 |
| Display color | White |
| Drive Duty | 1/32 Duty |
| Dot Patch | 0.17*0.17mm |
| Controller IC | SSD1306 |
| Outline Dimensions | 14.5×11.6×1.2mm |
| Active Area | 11.18*5.58mm |
| Interface | IIC port |
| Pixel Size | 0.155*0.155mm |
| Operating Temp. | -20°C~+70°C |
| Storage Temp. | -30°C~+80°C |
| Number of pins | 14 pins |
