TN Transflective Positive Monochrome 3.3V LCD Module for Electronic Scale

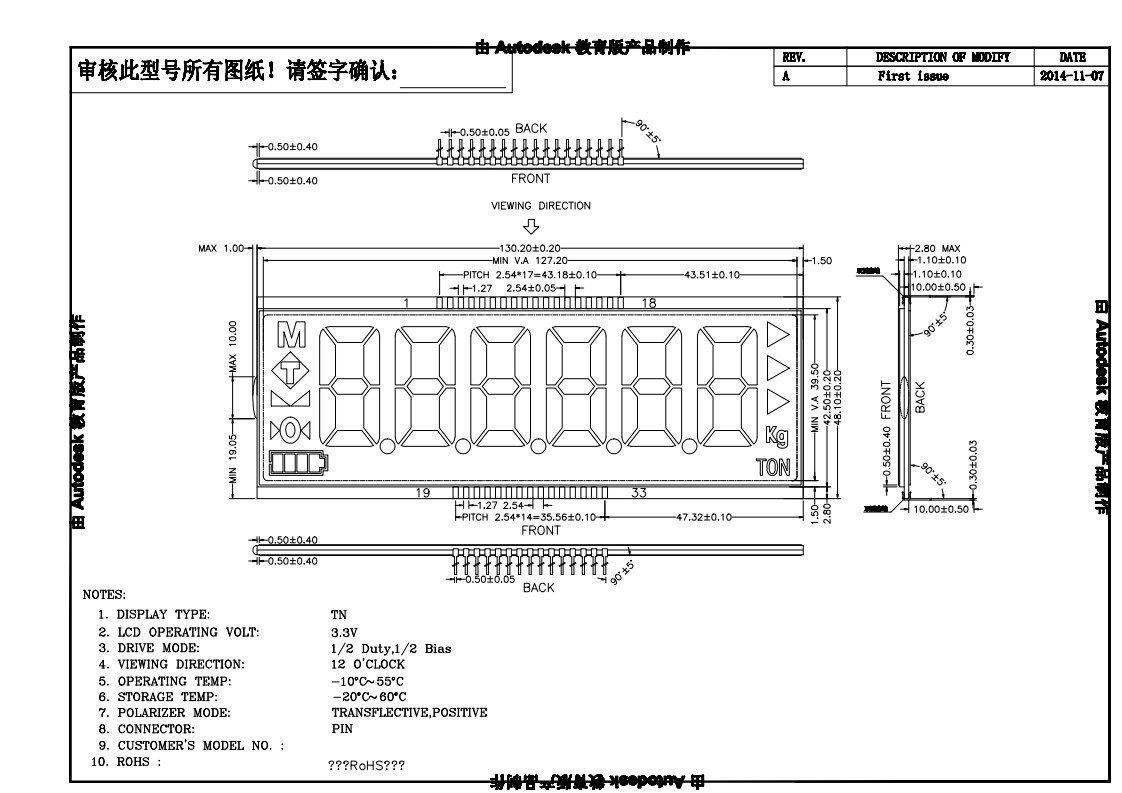

PRODUCT DETAIL
| Display type | TN negative Transmissive |
| Outline dimension | 130.20x48.10mm |
| VA size | 127.20x39.50mm |
| Viewing Angle | 12 O'clock |
| Operating Method | 1/2 DUTY 1/2 BIAS |
| Storage temperature | -20 to + 60℃ |
| Connector | PIN |
| Driving Voltage | 3.3 V |
Description of TN LCD Module
TN display stands for Twisted Nematic display. It is a type of LCD (Liquid Crystal Display) technology commonly used in computer monitors, laptops, and other electronic devices.
Here are some key characteristics of TN displays:
Features of TN LCD Module
Response Time: TN displays have fast response times, typically between 1ms and 5ms. This makes them suitable for fast-paced gaming and action-packed videos, as they can handle rapid motion without significant motion blur.
Refresh Rate: TN displays often offer high refresh rates, such as 144Hz or 240Hz. A higher refresh rate provides smoother on-screen motion and reduces visual artifacts like screen tearing.
Contrast Ratio: TN displays generally have lower contrast ratios compared to other display technologies like IPS (In-Plane Switching). This means that TN displays may have less vibrant colors and poorer viewing angles.
Viewing Angles: TN displays have limited viewing angles, especially in the vertical direction. When viewed from off-center angles, the colors and contrast may appear distorted or washed out.
Cost: TN displays are typically more affordable compared to other display technologies like IPS or OLED (Organic Light-Emitting Diode). This makes them popular in budget-oriented devices or in scenarios where fast response times are prioritized over other factors.
APPLICATION of TN LCD Module
FAQ of LCD:
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1) Product information-Quantity,part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
